TM11 SERIESMetal Bond Blades
Metallic blades that realize higher rigidity
- Metal bond
Applications: Green ceramics, Various types of packaging substrate, etc
The TM11 series realizes higher rigidity which exceeds that of electroformed blades by employing a high-rigidity metallic bond. This blade is expected to prevent wavy and slanted cutting and improve processing speed. Even in applications which require thin blades, the TM11 series achieves highly straight processing with improved processing speed and quality due to the high rigidity, which also make the TM11 series optimal for applications that require high blade exposure.
- Improved blade rigidity
- Exhibits the full ability of a thin blade
- Stable processing is possible due to long blade exposure
Correlation between Rigidity and Amount of Wear
Experimental Data
Compared to existing blades, wavy cutting is less likely to occur with the TM11 series due to its higher rigidity.

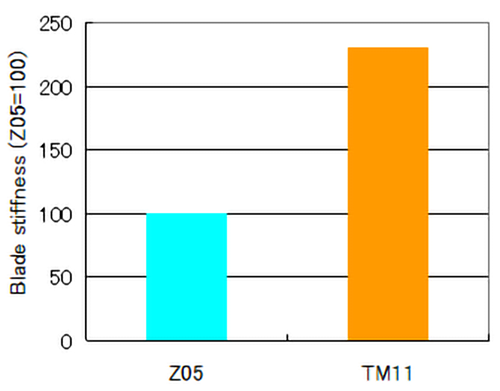

Comparison of Rigidity
| Blade | TM11-SD1000-MC100-50 Z05-SD1000-D1-60 |
Correlation between Amount of Wavy Meandering and Feed Speed
| Workpiece | Dummy ceramic |
| Spindle revolution | 35000 min-1 |
| Feed speed | 100→200→300→400→500 mm/s |
| Blade | TM11-SD800-MC100-50 Z05-SD800-D1-60 |
Specification
